2-Channel Solid State
Output Terminal 230 V, 0.3 A

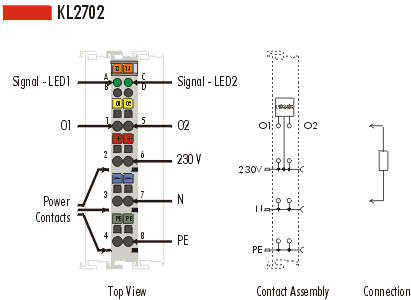

The KL2702 output terminal switches a mains voltage up to 230V AC / 230 V DC. The
switching element, a high-power MOSFET, is connected to the potential of the power contact
and is durably due to non-mechanical semiconductor technology. The KL2702 terminal
features two independent On/Off switches, which indicate their signal states with LEDs.
|
Technical data |
KL2702 |
|
Number of outputs |
2 x normally-open |
|
Mains voltage |
0 ... 230 V AC / DC |
|
Max. output current |
0.3 A continuous load per channel |
|
Surge voltage protection |
> 275 V |
|
Surge current |
0.5 A (20s), 1.5 A (100ms) |
| Switching speed | 1.65 ms typ. , 5 ms max. |
| Contact resistance | 2.1 W typ. , 3.2 W max. |
|
Electrical isolation |
500 Vrms (K-Bus / field voltage) |
|
Current consumption from K-Bus |
10 mA |
| Bit width in the process image | 2 O |
| Configuration | no address or configuration setting |
|
Weight approx. |
55 g |
|
Operating temperature |
0°C ... +55°C |
|
Storage temperature |
-25°C ... +85°C |
|
Relative humidity |
95%, no condensation |
|
Vibrations/Shock resistance |
conforms to IEC 68-2-6 / IEC 68-2-27 |
|
EMC resistance burst / ESD |
conforms to EN 50082 (ESD, Burst) / EN 50081 |
|
Installation position |
any |
|
Type of protection |
IP20 |
